V Series Vickers Digital Hardness Tester For Hardness Testing From Soft Materials To Very Hard Material

    Buy cheap V Series Vickers Digital Hardness Tester For Hardness Testing From Soft Materials To Very Hard Material from wholesalers

    Buy cheap V Series Vickers Digital Hardness Tester For Hardness Testing From Soft Materials To Very Hard Material from wholesalers
    • Buy cheap V Series Vickers Digital Hardness Tester For Hardness Testing From Soft Materials To Very Hard Material from wholesalers

    V Series Vickers Digital Hardness Tester For Hardness Testing From Soft Materials To Very Hard Material

    Ask Lasest Price
    Brand Name : Sinowon
    Model Number : V-10
    Certification : CE
    Price : negotiate
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 15 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    V Series Vickers Digital Hardness Tester For Hardness Testing From Soft Materials To Very Hard Material


    V Series Vickers Digital Hardness Tester For Hardness Testing From Soft Materials To Very Hard Material



    • Application

    1. Steel, non-ferrous metal, metal foil, hard alloy, metal sheet, microstructure, carbonization;
    2. Carburizing, nitriding and decarburizing layer, surface hardening layer, electroplating layer, coating, heat treatment;
    3. Glass, wafers and ceramic materials;


    • Technical Data
    NameVickers hardness tester
    ModelV-10
    Code#821-111
    Loading ForceKgf0.3,0.5,1,2,2.5,3,5,10
    N2.94,4.9,9.8,19.6,24.5,29.4,49.0,98.0
    Optic SystemObserve and Measure Objectives:10X/40X
    Hardness Range1HV-2967HV
    TurretManual Turret(Optional Motorized Turret)
    Loading ControlAuto loading dwell and unloading
    Eyepiece10x mechanical eyepiece
    Dwell Time5-60s Adjustable
    IlluminationLED / Halogen
    Vertical Space170mm
    Horizontal Space130m
    Power SupplyAC220V/50Hz; AC110V/60Hz
    Tester Dimension530x225x630mm
    Packing Dimension630x460x710mm
    Gross / Net Weight75Kg/55Kg
    Conform StandardsISO6507,ASTM E92,JIS Z2244,GB/T4340

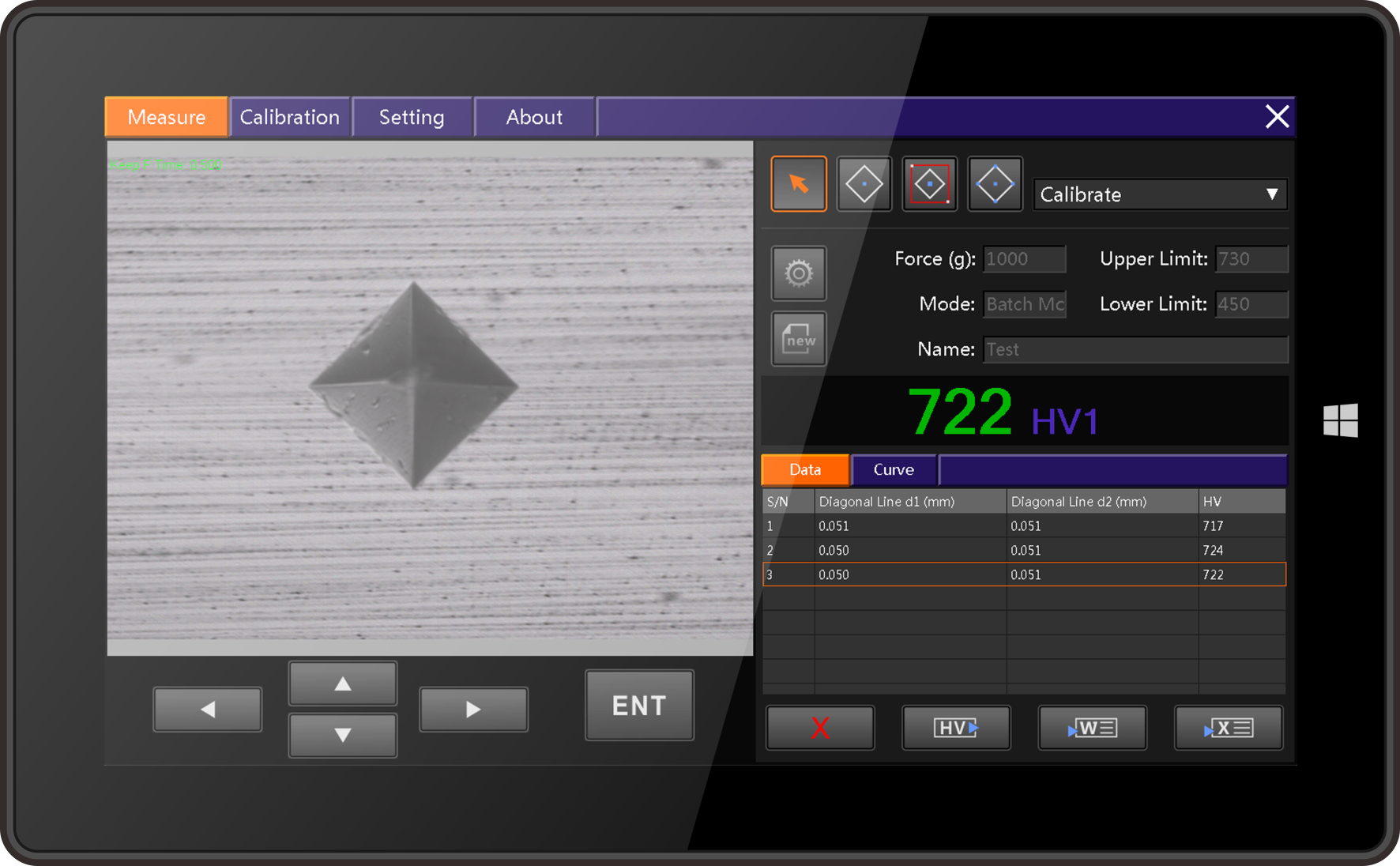

    • Software picture​

    Quality V Series Vickers Digital Hardness Tester For Hardness Testing From Soft Materials To Very Hard Material for sale
