Auto Ultrasonic Hardness Tester Machine , Shore Durometer Result In 3 Seconds

    Buy cheap Auto Ultrasonic Hardness Tester Machine , Shore Durometer Result In 3 Seconds from wholesalers

    Buy cheap Auto Ultrasonic Hardness Tester Machine , Shore Durometer Result In 3 Seconds from wholesalers
    • Buy cheap Auto Ultrasonic Hardness Tester Machine , Shore Durometer Result In 3 Seconds from wholesalers
    • Buy cheap Auto Ultrasonic Hardness Tester Machine , Shore Durometer Result In 3 Seconds from wholesalers

    Auto Ultrasonic Hardness Tester Machine , Shore Durometer Result In 3 Seconds

    Ask Lasest Price
    Brand Name : Sinowon
    Model Number : SU-300M
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 sets per month
    Delivery Time : 1-3 days
    • Product Details
    • Company Profile

    Auto Ultrasonic Hardness Tester Machine , Shore Durometer Result In 3 Seconds


    Auto Ultrasonic Hardness Tester Machine , Shore Durometer Result In 3 Seconds



    Specifications:


    Product NameUltrasonic Hardness Tester
    ModelSU-300M
    Code#882-141M
    Optional probeManual Probe:10N,20N,49N,98N ;Motorized Probe:3N,5N,8N,10N
    Measuring Range (ASTM)HBS:100-500; HV:100-1500; HRC:20-68; HRB:55-100; HRA:37-85; Mpa: 255-2180N/mm

    Measuring

    Accuracy

    Scales﹤250HV250~500HV500~800Hv﹥800HV
    HV0.16789
    HV0.36789
    HV0.85567
    HV15567
    HV55565
    HV105555
    Hardness ScalesVickers(HV);Rockwell C(HRC); Rockwell A(HRA); RockwellB(HRB);Brinell(HB)
    LCDColor Screen
    Data DisplayLCD Backlight, Adjustable
    LanguageChinese, English, German, Portugese, Turkish
    Data OutputRS232 Hyper Terminal/Bluetooth Printer
    printBluetooth
    Data StorageTo save 1000-groups of measuring data and 20-groups of calibration data
    Word inputLetters and numerals
    Working EnvironmentTemperature: -10°C to 50°C ; Humidity :30%-80% R.H.
    Battery VoltageRechargeable lithium battery ; Voltage :4.2V, 4800mAh
    Recharger VoltageAC220V/50Hz, 110V/60Hz
    Main unit Dimension and WeightMain unit Dimension :160 x 80 x 30mm (L x W x H);Manual Probe:Φ22×153mm ; Weight(No Probe): 0.5Kg
    Packing Dimension and WeightPacking Dimension 320 x 430 x 155mm (L x W x H) ; Packing Weight (Standard Delivery)4.3Kg

    Motorized Probe Specifications:


    Probe TypeMP-100MP-300MP-500MP-800
    Code#882-211882-221882-231882-241
    RemarkOptionalOptionalOptionalOptional
    Loading force1N3N5N8N
    Diameter46mm46mm46mm46mm
    Length200mm200mm200mm200mm
    Oscillating Rod Diameter3.7mm3.7mm3.7mm3.7mm
    Min weight of test material0.3kg0.3kg0.3kg0.3kg
    Min thickness of test material2mm2mm2mm2mm

    Wide Application, Powerful Function:

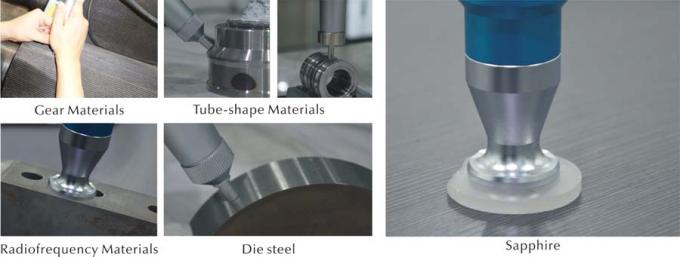

    Motorize Ultrsonic Hardness tester is designed with modular template, collocation with motorized probe MP-300, MP-500, MP-800, MP-1000, which can be measured flange edges and gear root of stamping parts, mould, sheet, hardening surface of the tooth and gear and taper part hardness; And hardness of the shaft, the pipe including inside and outside wall, container, the wheel, turbine rotor, bit blade , HAZ weld, printing roller, injection molding machine screw parts ,etc.
    SU - 300M can measure the vast majority of the hardness of ferrous, non-ferrous metals and the alloys in industrial production, and it is a kind of perfect testing instruments. By comparing method, it can measure the material hardness of HRA, HRB, HRC, HV, HBW, HS and steel hardness at production line and laboratory.
    Motorized ultrasonic hardness tester SU – 300M can be added with manual probe HP - 1 k, HP - 2 k, HP - 5 k, HP - 10 k to measure rough samples.
    SU - 300M can measure the hardness of coating, also known as the coating hardness tester, the portable Vickers coating s hardness tester.

    Mass Storage Ultrasonic Hardness Tester Motorized Probe Test Tube Material

    Mass Storage Ultrasonic Hardness Tester Motorized Probe Test Tube Material
