    Accuracy ±3% HV Portable Durometer , Motorized Ultrasonic & Leeb Hardness Tester

    Ask Lasest Price
    Brand Name : Sinowon
    Model Number : SU-400M
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 sets per month
    Delivery Time : 1-3 days
    • Product Details
    • Company Profile

    Accuracy ±3% HV Portable Durometer , Motorized Ultrasonic & Leeb Hardness Tester


    Accuracy ±3% HV Portable Durometer , Motorized Ultrasonic & Leeb Hardness Tester


    Technical specifications:

    Product nameDynasonic Hardness Tester
    ModelSU-400
    Code##882-151
    Ultrasonic ProbeStandard delivery:2Kgf(optional Manual 1Kgf,5Kgf,10Kgf,motorized 0.3Kg and 1Kgf)
    Impact DevicesStandard delivery:D(optional DC,DL,D+15,C, G)
    Hardness ScaleHL, HV,HB,HRC,HRB,HRA,HS, etc.
    Measuring Range

    HV:50~1599; HRC:20~68; HB:76~650;

    HRB:41~105; HLD:170~960;

    Measuring AccuracyHV:±3%HV; HRC:±1.5HRC; HB:±3%HB;HL: ±8HL
    Resolution0.1HR, 1HV, 1HB, 1HLD,0.1HS
    Result DisplayMeasurement value, Max, Min, Ave, single mode, batch mode, etc.
    Data Storage1000 group test results and 20 group calibration data
    Data TransferBluetooth
    Continuous Working Period10h (turn off the back light)
    Operating EnvironmentTemperature: -10℃~50℃; Humidity: 30%~80%
    Operating Voltage4.2V
    Charge ModeUSB
    Dimension160x80x31mm
    Weight≤500g(probe not included)

    Standard Delivery:

    Product NameCode #Product NameCode #Product NameCode #
    Instrument Main Body882-151Rockwell Hardness Block882-611Accessories Box882-901
    2Kg Manual Probe HP-2K882-321Leeb Hardness Block882-630USB Cable882-851
    Impact Devices Type D882-410Probe Cable882-801Operation ManualSU-400








    Optional Accessories:

    Product NameCode #Product NameCode #
    1Kg Manual Probe HP-1K882-311Rockwell Hardness Block HRC882-631
    5Kg Manual Probe HP-5K882-331Vickers Hardness Block HV882-651
    10Kg Manual Probe HP-10K882-341Big Cylinder Support Ring882-531
    0.3 Kg Motorized Probe MP-300882-221Mini-Printer882-831
    1Kg Motorized Probe MP-1000882-251Testing Stand882-301
    Deep Hole Probe Cap882-721Handy Silicone Shell882-861
    Small Cylinder Support Ring882-521Plan Support Ring882-511

    Wide Application, Powerful Function:

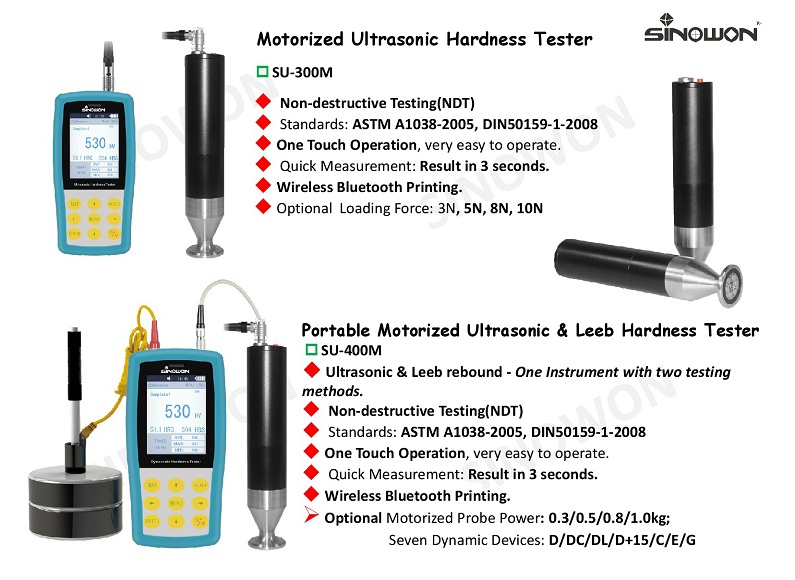

    Motorize Ultrsonic Hardness tester is designed with modular template, collocation with motorized probe MP-300, MP-500, MP-800, MP-1000, which can be measured flange edges and gear root of stamping parts, mould, sheet, hardening surface of the tooth and gear and taper part hardness; And hardness of the shaft, the pipe including inside and outside wall, container, the wheel, turbine rotor, bit blade , HAZ weld, printing roller, injection molding machine screw parts ,etc.
    SU - 300M can measure the vast majority of the hardness of ferrous, non-ferrous metals and the alloys in industrial production, and it is a kind of perfect testing instruments. By comparing method, it can measure the material hardness of HRA, HRB, HRC, HV, HBW, HS and steel hardness at production line and laboratory.
    Motorized ultrasonic hardness tester SU – 300M can be added with manual probe HP - 1 k, HP - 2 k, HP - 5 k, HP - 10 k to measure rough samples.
    SU - 300M can measure the hardness of coating, also known as the coating hardness tester, the portable Vickers coating s hardness tester.

    Mass Storage Ultrasonic Hardness Tester Motorized Probe Test Tube Material

    Mass Storage Ultrasonic Hardness Tester Motorized Probe Test Tube Material
