Optical Video Measuring Equipment / 2.5D Vision Measuring Machine 3um Repeatability

Product Introduction:

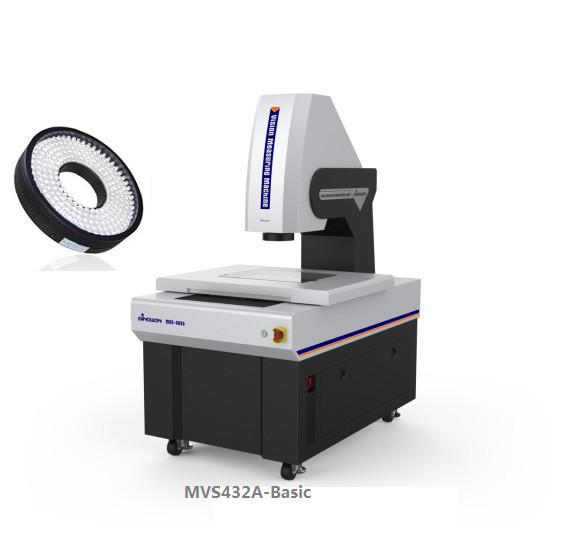

MVS is an economic Fully Auto Vision Measuring Machine for basic measurement, three-axis motorized control, with click zoom lens, accurate manual zoom, high configuration, to meet with different application. It is widely used in Metal mold, electronic industry, medical equipment and flat panel display industry, as well as research institutes, colleges and universities, metrology institutions and dimension inspection on production line.

Five Reasons Choice Us:

1. Auto Focus
2. Auto Light
3. Auto Measurement
4. Three-axis XYZ axis Motorized
5. Click Zoom Lens

Product Characteristics:

• High precision X/Y/Z-axis CNC fully auto control, high position accuracy;
• “00” grade “JINANQING”marble base and pillar, stable and reliable;
• Precision linear guide, grinding ball screw and AC servo motor, ensure accuracy stability of system position;
• 0.5um high precision linear scale, ensure position and measurement accuracy;
• Imported high definition color industry digital camera, ensure clear observation and stable measurement requirement;
• 6.5X click zoom lens, precision manual zoom, only need to make pixel calibration once time;
• Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
• With proprietary powerful function fully auto measuring software iMeasuring 4.0;

² Can set auto measurement, and finish batch measurement with high efficient;

² Laser, probe, coaxial illumination and other parts are optional;

• Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.

Technical Specification:

* L is measuring length,unit is mm, the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

**Magnification is approximate value, it is related to the dimension of monitor and resolution.

Customers can choose 0.5X or 2X optional objective, and realize image magnification: 13X~86X or 52X~344X.
