    60Hz Portable Hardness Tester metal hardness testing equipment Universal impact direction

    Ask Lasest Price
    Brand Name : SINOWON
    Model Number : SU-300M
    Certification : CE
    Payment Terms : T/T,L/C
    Supply Ability : 100 SETS/MONTH
    Delivery Time : 10-15 DAYS
    • Product Details
    • Company Profile

    60Hz Portable Hardness Tester metal hardness testing equipment Universal impact direction

    60Hz Portable Hardness Tester metal hardness testing equipment Universal impact direction


    Ultrasonic Hardness Testing apply UCI method: Ultrasonic Contact Impedance, a hardness testing method developed by Dr. Claus Kleesattel in 1961 based on the measurement of the frequency shift of a resonating rod caused by the essentially elastic nature of the finite area of contact between the indenter and the test piece during the penetration, the execute standard is ASTM A1038.

    High Measurement Accuracy - ±3% HV, ±1.5HR, ±3%HB;
    Small Indentation - Only high-power microscope can observe the indentation;
    Efficient Measurement - Result In 2 Seconds;
    Large LCD Directly display measurement result, times count, Maximum, Minimal, Average and deviation;
    Easy Operation - Operate well after Short training;
    High performance - 2-Year Warranty for Main Unit (Excludes Probe);
    Mass Storage - Save 1000 groups measurement data;
    Simple Calibration - Save 20 groups calibration data for invoking, improve calibration efficiency.

    SU-300 Application Range:
    At present, there are kinds of methods for hardness measurement, commonly used like Brinell, Rockwell,Vickers, Leeb, etc. while the disadvantages are obvious for the above hardness measurement.
    Rockwell and Brinell with heavy loading force and big indentation, lead to serious destruction on sample surface.
    Vickers apply optical measurement, but only professional technicians can operate smoothly, impossible to measure hardness of heavy work piece, installed machinery and permanently assembled parts.
    Leeb hardness tester apply rebound and indirect method to measure hardness, easily lead to big deviation when convert to Birnell, Rockwell and Vickers scales.
    Ultrasonic hardness tester SU300 apply ultrasonic contact impedance method to do comparative hardness measurement for testing pieces, with advantages of high accuracy, efficiency, portable and easy operation.
    Ultrasonic hardness tester SU300 is widely used to measure hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitrided stamping dies and molds, forms, presses, thin walled parts, bearings, tooth flanks, etc.

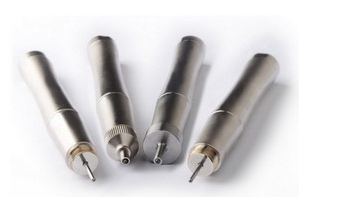

    Optional Manual Probes

    Optional Testing Stand

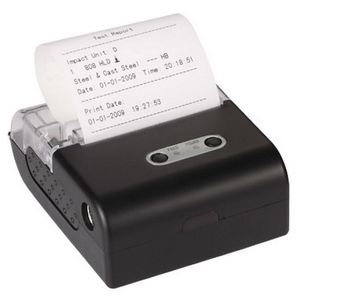

    Optional Printer

    When selecting a hardness tester for your application, it is important for you to consider the following:

    A, Choose the correct test method based on the application.
    Plan to use the highest test force and largest indenter possible. Consider the effects of the shape and dimensions of your test sample.
    B, Verify the test results meet your requirements for accuracy and repeatability. There are significant differences between levels of performance within each classification of tester. A difficult job on one tester could be very simple and fast on another.

    Answer these key questions:
    1, What kind of hardness scale to be used?
    2, What is the material to be tested, and is this material suitable to the type of test method you are considering?
    3, How large is the part, component or specimen to be tested?
    4, Is the test point difficult to reach?
    5, What is the quantity of testing that will be done?
    6, How accurate does your test result need to be?
    7, What is your budget?
    8, What is the required return on investment and do you have ways to measure reductions in costs- yields, throughput, operator efficiency?
    9, What testing problems have you experienced in your current method?
    10, How knowledgeable are the users of the tester?


    Technical Specifications of SU-300M:

    Product NameUltrasonic Hardness Tester
    ModelSU-300M
    Code#882-141M
    Optional probeManual Probe:10N,20N,49N,98N ;
    Motorized Probe:3N,5N,8N,10N
    Measuring Range (ASTM)HBS:100-500; HV:100-1500; HRC:20-68; HRB:55-100;
    HRA:37-85; Mpa: 255-2180N/mm
    Measuring
    Accuracy
    Scales<250HV250~500HV500~800Hv>800HV
    HV0.16789
    HV0.36789
    HV0.85567
    HV15567
    HV55565
    HV105555
    Hardness ScalesVickers(HV);Rockwell C(HRC); Rockwell A(HRA);
    RockwellB(HRB);Brinell(HB)
    LCDColor Screen
    Data DisplayLCD Backlight, Adjustable
    LanguageChinese, English, German, Portugese, Turkish
    Data OutputRS232 Hyper Terminal/Bluetooth Printer
    printBluetooth
    Data StorageTo save 1000-groups of measuring data and 20-groups of calibration data
    Word inputLetters and numerals
    Working EnvironmentTemperature: -10°C to 50°C ; Humidity :30%-80% R.H.
    Battery VoltageRechargeable lithium battery ; Voltage :4.2V, 4800mAh
    Recharger VoltageAC220V/50Hz, 110V/60Hz
    Main unit Dimension and WeightMain unit Dimension :160 x 80 x 30mm (L x W x H);Manual
    Probe:Φ22×153mm ; Weight(No Probe): 0.5Kg
    Packing Dimension and WeightPacking Dimension 320 x 430 x 155mm (L x W x H) ;
    Packing Weight (Standard Delivery)4.3Kg


    Standard Delivery:


    Product NameCode #Product NameCode #Product NameCode #
    Instrument Main Body882-141M10N Motorized Probe882-251Anti Vibration Case882-901
    Standard Rockwell Block882-641Probe Cable882-801Screw882-951
    USB Recharger882-851COM Cable882-810Operation ManualSU-300M
    Qualification CertificateSU-300MPacking ListSU-300MWarranty CardSU-300M
