    Portable Universal Dynasonic Digital Hardness Tester SU -400 Support Leeb And UCI Härteprüfer

    Portable Universal Dynasonic Digital Hardness Tester SU -400 Support Leeb And UCI Härteprüfer
    1. Brief Introduction:

    SU-400 is a combined portable hardness tester which integrated the ultrasonic hardness testing method and dynamic Leeb hardness testing. It supports not only the UCI measurement of ultrasonic including manual probe 1kg, 2kg, 5kg, 10kg and motorized probe 0.3kg, 1kg but also the seven dynamic impact devices of Leeb measurement that is D, DC, DL, D+15, C, E, G to do rebound measurement.

    SU-400 is an instrument with two applications. It can test thin, bright and clean specimen with the ultrasonic method and rough big specimens with Leeb rebound method. It solves the dilemma that Leeb method can not test electroplated coatings and hard coatings and ultrasonic method can not test coarse-grained materials.



    2. Features:

    ● One instrument two applications—Support ultrasonic probe and Leeb impact device.

    ● Metal shell—Metallic texture, shield electromagnetic interference effectively, improve instrument stability.

    ● Color screen display—Display the current measurement value, accumulative measurement value, Max, Min and Ave value.

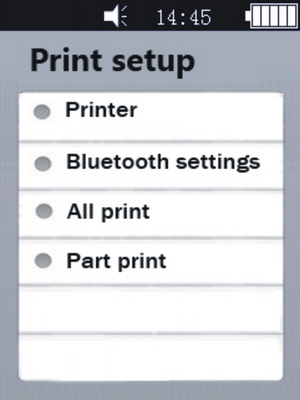

    ● Bluetooth transferring—Support wireless Bluetooth print and data transferring.

    ● Mass storage—Save 1000 groups data.

    ● Calibration access—Save 20 groups calibration data without doing calibration for the same material over and over.



    3, Technical Specification:

    Product name

    Dynasonic Hardness Tester

    Model

    SU-400

    Code

    #882-151

    Ultrasonic probe

    Standard delivery:2Kgf(optional1Kgf,5Kgf,10Kgf,motorized 0.3Kg and 1Kgf)

    Impact devices

    Standard delivery:D(optional DC,DL,D+15,C, G)

    Hardness scale

    HL, HV,HB,HRC,HRB,HRA,HS, etc.

    Measuring range

    HV:50~1599; HRC:20~68; HB:76~650;

    HRB:41~105; HLD:170~960;

    Measuring accuracy

    HV:±3%HV; HRC:±1.5HRC; HB:±3%HB;HL: ±8HL

    Resolution

    0.1HR, 1HV, 1HB, 1HLD,0.1HS

    Result display

    Measurement value, Max, Min, Ave, single mode, batch mode, etc.

    Data storage

    1000 group test results and 20 group calibration data

    Data transfer

    Bluetooth

    Continuous work time

    10h (turn off the back light)

    Operating environment

    Temperature: -10℃~50℃; Humidity: 30%~80%

    Operating voltage

    4.2V

    Charge mode

    USB

    Dimension

    160x80x31mm

    Weight

    ≤500g(probe not included)



    Applications of Leeb Impact Devices:

    Impact Device

    Order#

    Application

    D

    852-410

    Most widely used impact device, for the majority of testing applications.

    DC

    852-420

    Short impact device, for application in restricted spaces,

    e.g. in bores, cylinders or for measurements in assembled machines.

    DL

    852-430

    Slim measuring nose, for measurement under extreme space

    limitations or on the floor of grooves.

    C

    852-440

    For surface-hardened components, coatings,

    thin or impact-sensitive parts.

    E

    852-460

    Diamond indenter, for measurements in extreme hardness ranges

    (above 50HRC/650HV). Tool steels with high carbide content.

    G

    852-470

    Increased impact energy, solid components, e.g. heavy-duty casts and forged parts.
