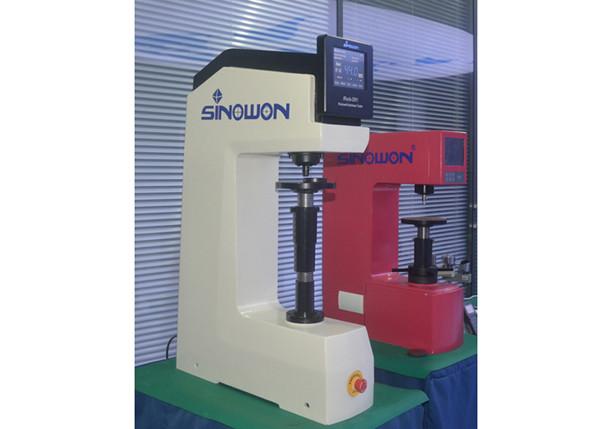

Digital Hardness Tester Rockwell
Function:
● A kind of Full-auto Intelligent Digital Rockwell Hardness Tester,
available to test Rockwell and Superficial
Rockwell hardness automatically.
● One-key operation, auto lifting, auto load-change, auto
loading/dwell/unloading,auto conversion, auto
testing.
● Equipped with friendly operation interface, 5.2“ color touch
screen directly display test force, dwell time,
conversion value, indenter type, etc.
● Auto calculating and displaying test result, Max, Min, Ave, and
hardness deviation. Resolution is 0.1HR.
● Available to set up upper and lower limit, with the function of
over-error warning, data analysis chart,
single test and group test.
● With software compensation function, available to compensate
±3HR, need not mechanical adjustment.
● With function of auto conversion according to ASTM E140, without
checking hardness contrast table.
● Available to switch languages.:
Chinese,English,German,Portuguese,Turkish,Czech,Korean.

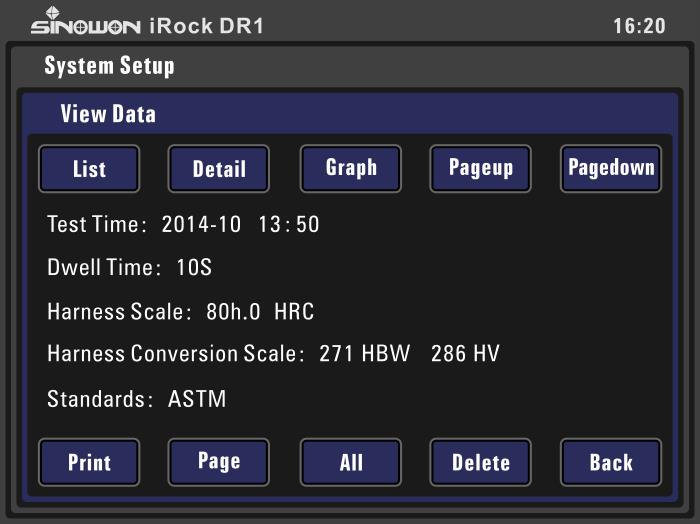

● Available to save 2000 single test results and 1000 group test
results. Can realize data viewing and
analysis
● With optional wireless Bluetooth printer, there is no need to
record results and report by hand.
● With optional data analysis software and Bluetooth receiver to
input and analyze data.
● Support FexQMS data analysis and control software, improve
integral control and decrease material
consumption.
Application Range:
◆Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys,
malleable iron, etc.
◆Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable
iron, titanium, deep case hardened
steel, and other materials harder than B100.
◆Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow
case-hardened steel.
Technical Specifications:
Product name | Full-auto Superficial Rockwell Hardness Tester |
Model | iRock-TR1 |
Code # | 811-350 |
Preliminary test force | 3Kgf(29.4N);10Kgf(98.1N) |
Total test force | 15Kgf(147.1N),30Kgf (294.3N),45Kgf(441.3N); 60Kgf(588.4N),100Kgf (980.7N),150Kgf(1471N) |
Rockwell scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR,
HRS, HRV |
Superficial Rockwell scale | HR15N,HR30N,HR45N,HR15T,HR30T,HR45T HR15W,HR30W,HR45W, HR15X,HR30X,HR45X,HR15Y,HR30Y,HR45Y |
Full Rockwell scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV;15T,30T,45T;15T,30T,45T;15W,30W, 45W;15X,30X,45X;15Y,30Y,45Y;15N,30N,45N |
Dwell time | 1-60s adjustable |
Display screen | 5.2 ”Color touch screen; Resolution:640*480 |
Resolution | 0.1HR |
Loading mode | Auto loading/dwell/unloading |
Conversion scale | HRC,HV,HBS,HBW,HK,HAR,HRD,HR15N,HR30N,HR45N,HS,HRF,HR15T, HR30T,HR45T,HRB |
Conversion standard | ASTM E140, DIN-50150 |
Language | Chinese,English,German,Portuguese,Turkish,Czech,Korean |
Software correction | -3.0HR ~ +3.0HR, step value 0.1HR |
Data processing | 2000 group single dat, line chart of group data function;
respectively provide single data viewing and group data viewing |
Print | Optional wireless printer |
Max. Height of specimen | 280mm |
Throat | 170mm |
Power supply | AC 220V/50Hz;AC110V/60Hz |
Dimension | 620 x 210 x 900mm |
Packing dimension | 735×525×1025 (mm) |
Gross/Net weight | 140Kg/125Kg |
Execution standard | GB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18 |
Standard Delivery:
Product name | Code # | Product name | Code # |
Instrument main body | / | Ø1.588mm Ball indenter | 811-411 |
Hardness block | 811-641C | Ø1.588mm Steel ball | 811-421 |
Hardness block HRC | 811-611C | Diamond indenter | 811-401 |
Hardness block HRB | 811-641B | Weight A | 811-711 |
Hardness block HR30N | 811-671N | Weight B | 811-721 |
Hardness block HR30T | 811-671T | Weight C | 811-731 |
Ø150mm Flat anvil | 811-541 | Accessories box | 811-901 |
Ø60mm Flat anvil | 811-521 | Anti-dust cover | 811-911 |
Ø40mm V-shape anvil | 811-511 | Operation manual | iRock-DR1/ SR1/TR1 |
