    Multi-Languages Rockwell Hardness Tester with Touch Screen Support Blue Tooth Printing

    Ask Lasest Price
    Brand Name : Sinowon
    Model Number : Vexus SHR-150D
    Certification : CE
    Price :
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 sets/month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

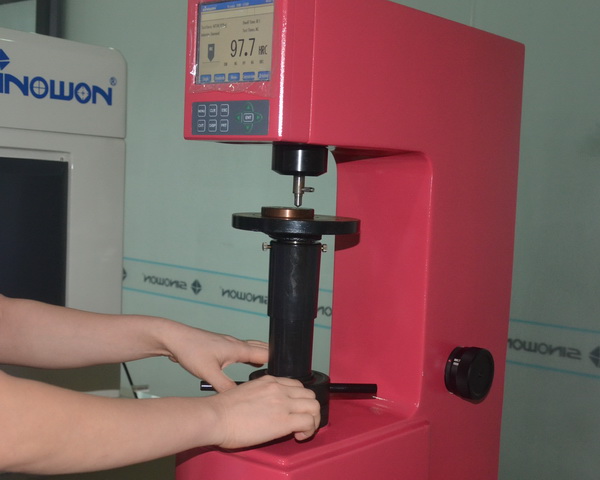

    Multi-Languages Rockwell Hardness Tester with Touch Screen Support Blue Tooth Printing

    Multi-Languages Rockwell Hardness Tester with Touch Screen Support Blue Tooth Printing


    Characteristics:


    * Half automatic hardness tester except loading initial force and change force knob. Operation is very


    convenient and fast.


    * Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.


    * Motorized control loading, dwell and unloading, eliminates error by manual operation.


    * Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR, largely


    improve accuracy.


    * Auto hardness conversion to others scales, no need to check table and improve working efficiency.


    * Support Multiple languages, English, Turkish, German, etc. Convenient for local customers operation.


    * With 2000 single testing results and 1000 group results. Reviewing results and analysis.


    * Optional blue tooth mini printer is available.



    Application:


    Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.


    Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.


    Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.


    Technical Specification:


    Product Name

    Color Touch Screen Digital Rockwell Hardness Tester

    Model

    Vexus SHR-150D

    Code#

    811-171

    Rockwell Scales

    HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,

    HRL,HRM,HRP,HRR,HRS,HRV

    Preliminary Test Force

    10Kgf(98.07N) Permitted Error:±2.0%

    Test Force

    60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N)

    Permitted Error:±1.0%

    Dwell Time

    Adjustable 1-60s

    Hardness Indication

    5.2” Touch Screen, Resolution:640x480

    Resolution

    0.1HR

    Loading Control

    Auto Loading/Dwell/Unloading

    Hardness Conversion

    HRC,HV,HBS,HBW,HK,HRA,HRD,HR15N,HR30N,

    HR45N,HS,HRF,HR15T,HR30T,HR45T,HRB

    Conversion Standards

    ASTM,DIN

    Language Option

    Chinese, English, German, Portuguese, Turkish, Czech, Korean

    Correction Range

    -3.0HR to +3.0HR, Step 0.1HR

    Data Memory

    2000 Single Measuring Result, Curve Analysis, Results

    Reviewing And Analysis

    Data Output

    Optional Blue Tooth Mini Printer

    Max. Height Of Specimen

    175mm

    Instrument Throat

    165mm

    Power supply

    AC220V/50Hz;AC110V/60Hz

    Dimension(LxWxH)

    520 x 215 x 700mm

    Packing Dimension

    630 x 440 x 960mm

    Gross/Net Weight

    120Kg/90Kg

    Execution Standard

    GB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18



    Standard Delivery:


    Product Name

    Code#

    Product Name

    Code#

    Instrument Main Body

    811-171

    Ø1.588mm Ball Indenter

    811-411

    Hardness Block (57-70) HRC

    811-641C

    Ø1.588mm Steel Ball

    811-421

    Hardness Block (20-33) HRC

    811-611C

    Cone Diamond Indenter

    811-401

    Hardness Block (85-100) HRB

    811-641B

    Weight A

    811-741

    Ø 150mm Flat Anvil

    811-541

    Weight B

    811-751

    Ø 60mm Flat Anvil

    811-521

    Weight C

    811-761

    Ø 40mm V-shape Anvil

    811-511

    Power Cable

    811-801

    Accessories Box

    811-901

    Instrument Manual

    Vexus SHR-150D
