    Automatic Digital Rockwell Hardness Tester with 400mm Vertical Space , Plastic / Metal

    Ask Lasest Price
    Brand Name : Sinowon
    Model Number : Vexus SHR-150H
    Certification : CE
    Price :
    Supply Ability : 100 sets /month
    Delivery Time : 10 days
    Payment Terms : Western Union
    • Product Details
    • Company Profile

    Automatic Digital Rockwell Hardness Tester with 400mm Vertical Space , Plastic / Metal

    Automatic Digital Rockwell Hardness Tester with 400mm Vertical Space , Plastic / Metal
    Introduction:
    Vexus SHR-150H can be used directly to measure Rockwell hardness for metal and plastic material.
    Vexus SHR-150H Provided with many features such as high measuring precision, wide measuring range with 15 Rockwell scales.
    Vexus SHR-150H Automatic test force switch according the selected scale without manual operation.
    Vexus SHR-150H Automatic load cycle. The loading, dwell, unloading process of the main test force are controlled exactly to meet standard.

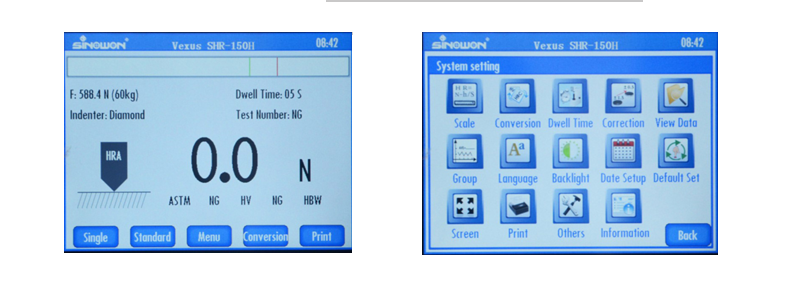

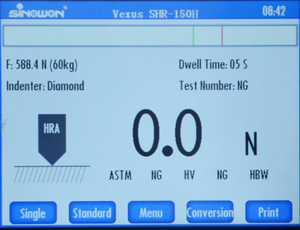

    Vexus SHR-150H Measuring results digitally displaying and can be printed, or transmitted to external computer automatically.
    Vexus SHR-150H The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal, and engineering plastic etc.

    The Rockwell test consists of measuring the additional depth to which a carbide ball or diamond penetrator is forced by a heavy (major) load beyond the depth of a previously applied light (minor) load (SET point).


    The minor load is applied first and a SET position is established on the dial gauge or displacement sensor of the Rockwell tester. Then the major load is applied. Without moving the piece being tested, the major load is removed and, with the minor load still applied, the Rockwell hardness number is automatically indicated on the dial gauge or digital display.


    The diamond penetrator is used for testing materials such as hardened steels and cemented carbides. The carbide ball penetrators, available with 1/16 inch, 1/8 inch, 1/4 inch, and 1/2 inch diameter, are used when testing materials such as steel-copper alloys, aluminum and plastics to name a few.


    Rockwell testing falls into two categories: Regular Rockwell testing (e.g., C and B scales) and Rockwell superficial testing (e.g., 30 N and 30 T scales).


    High Rockwell hardness numbers represent hard materials and low numbers soft materials.




    Technical Data:


    Product Name

    Heighten Color Touch Screen Digital Rockwell Hardness Tester

    Model

    Vexus SHR-150H

    Code#

    811-150

    Rockwell Scales

    HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK

    Preliminary Test Force

    10Kgf(98.07N) Permitted Error:±2.0%

    Test Force

    60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N)

    Permitted Error:±1.0%

    Dwell Time

    Adjustable 1-60s

    Hardness Indication

    5.2” Touch Screen, Resolution:640x480

    Resolution

    0.1HR

    Loading Control

    Auto Loading/Dwell/Unloading

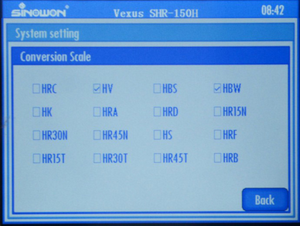

    Hardness Conversion

    HRC,HV,HBS,HBW,HK,HRA,HRD,HR15N,HR30N,

    HR45N,HS,HRF,HR15T,HR30T,HR45T,HRB

    Conversion Standards

    ASTM,DIN

    Language Option

    Chinese, English, German, Portuguese, Turkish, Czech, Korean

    Correction Range

    -3.0HR to +3.0HR, Step 0.1HR

    Data Memory

    2000 Single Measuring Result, Curve Analysis, Results

    Reviewing And Analysis

    Data Output

    Optional Blue Tooth Mini Printer

    Max. Height Of Specimen

    400mm

    Instrument Throat

    160mm

    Power supply

    AC220V/50Hz;AC110V/60Hz

    Dimension(LxWxH)

    520 x 250 x 1030mm

    Packing Dimension

    635×565×1155 (mm)

    Gross/Net Weight

    163Kg/143Kg

    Execution Standard

    GB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18


    Standard Delivery:


    Product Name

    Code#

    Product Name

    Code#

    Instrument Main Body

    811-150

    Ø1.588mm Ball Indenter

    811-411

    Hardness Block (57-70) HRC

    811-641C

    Ø1.588mm Steel Ball

    811-421

    Hardness Block (20-33) HRC

    811-611C

    Cone Diamond Indenter

    811-401

    Hardness Block (85-100) HRB

    811-641B

    Weight A

    811-741

    Ø 150mm Flat Anvil

    811-541

    Weight B

    811-751

    Ø 60mm Flat Anvil

    811-521

    Weight C

    811-761

    Ø 40mm V-shape Anvil

    811-511

    Power Cable

    811-801

    Accessories Box

    811-901

    Instrument Manual

    Vexus SHR-150H
