    Inverted BF Metallurgical Measurement Microscope With Infinitive Plan Achromatic Objective

    Ask Lasest Price
    Brand Name : SINOWON
    Model Number : IMS-310
    Certification : CE
    Supply Ability : 100 sets per month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    Inverted BF Metallurgical Measurement Microscope With Infinitive Plan Achromatic Objective

    Inverted BF Metallurgical Measurement Microscope With Infinitive Plan Achromatic Objective


    Characteristics:


    IMS-310 Infinitive Optical System Providing Excellent Optical Functions. With the stable stand structure,


    advanced stage design and comfortable operation, it is widely used in institute and laboratory to observe


    and identify the structure of various metal and alloy.


    Inverted BF Metallurgical Measurement Microscope With Infinitive Plan Achromatic Objective

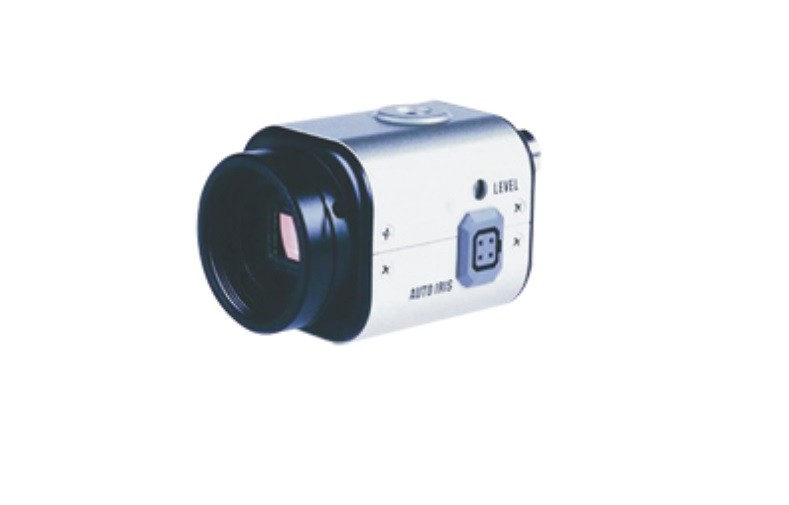

    CCD Camera


    Standard Delivery:


    Product Name

    Inverted Metallurgical Microscope IMS-310(#431-144)

    Code#

    Eyepiece

    High-point , extra wide field eyepiece EW10×/ 20

    431@514

    Objectives

    Infinitive Plan achromatic objective 4X/0.1


    Infinitive Plan achromatic objective10X/0.25


    InfinitivePlan achromatic objective20X/0.4(s)


    Infinitive Plan achromatic objective 40X/0.6

    431-614


    431-634


    431@644


    432-654

    Viewing Head

    Inclined 30°, interpupillary distance 48-75mm

    431-504

    Focusing

    Coaxial coarse & fine adjustment, Vertical objective movement,


    Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation

    431-704

    Mechanical Stage

    Plain stage, stage layer Ø110mm, hole Ø10mm,Ø15mm,Ø25mm


    Moving range 120X78mm,loading plate 128X86mm

    431-404

    Nosepiece

    Quintuple Nosepiece

    431-604

    Illuminator

    6V/30W Halogen Lamp,Adjustable

    431-804

    Color Filter

    Yellow, Blue , Green Color Filter, Ground Glass

    432-304

    Power Supply

    AC220V/50Hz;110V/60Hz

    431-814


    Optional Accessories:


    Product Name

    Code#

    Product Name

    Code#

    Infinite Plan Achormatic 5x/0.25

    431-664

    Infinite Plan Achormatic 80x/0.9

    431-684

    Infinite Plan Achormatic 100X/0.80

    431-694

    Mechanical 226x178mm

    431-414

    1xC-mount(Available for Digital Camera)

    431-714

    USB Camera USB-A1

    484-513
