    Vídeo Máquinas de medición Portable Video Measuring Machines With CMOS Camera And 2um Repeatability

    Ask Lasest Price
    Brand Name : SINOWON
    Model Number : OP-TEK 2015
    Certification : CE
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    Vídeo Máquinas de medición Portable Video Measuring Machines With CMOS Camera And 2um Repeatability

    Vídeo Máquinas de medición Portable Video Measuring Machines With CMOS Camera And 2um Repeatability


    Characteristics:


    1 Adjustable LED cold illumination (contour and surface) controlled by software and PC system, avoid the


    thermal deformation of sample;


    2 Steady performance, facilitated operation and easy carry,High-strength aluminum alloy structure and


    Pretty design with compacted frame;


    3 Toothless rod drive and high-precision V-type linear guide to ensure good stability to ensure good


    stability, rigidity and reduce the geometric error of the dynamic deformation;


    4 High-accuracy glass stage and unique center rotary table ;


    5 High resolution CMOS Camera without image card, USB2.0 interface supports plug and play, Simple


    and practical OP-TEK software, desktop and notebook PC are available.


    Vídeo Máquinas de medición Portable Video Measuring Machines With CMOS Camera And 2um Repeatability

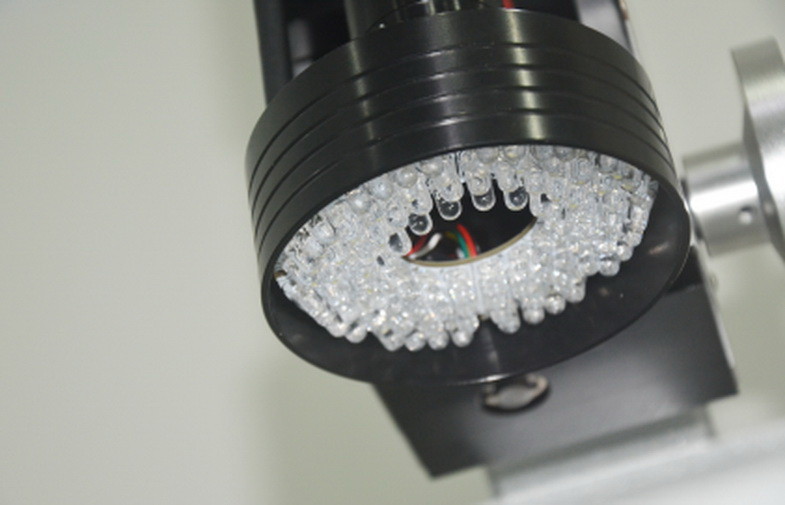

    Adjustable LED Cold Illumination


    Specification:


    Model

    OP-TEK 1010

    OP-TEK 2010

    Code

    522-108

    522-118

    Metal Table Size

    200x200

    300x200

    Glass Table Size

    ¢100mm

    220x120mm

    X/Y-axis Travel

    100x100mm

    200x100mm

    Accuracy

    2.0+L/200

    2.0+L/200

    Repeatability

    ±2um

    ±2um

    Linear Scale

    High-precision linear scale, resolution:0.0005mm

    Illumination

    Contour

    Adjustable 256-grade LED Cold illumination
    Adjustable 256-grades 3-Ring & 8-Division LED illumination

    Surface

    Video System

    USB2.0 CMOS Camera, 6.5X Detented zoom lens

    Measuring Software

    OP-TEK 1.0

    OP-TEK 1.0

    Max.Load (kg)

    10

    10

    Dimension

    40x46x65

    50x46x65mm

    Net Weight

    30kg

    30kg


    Standard Delivery:


    Product Name

    Code#

    Product Name

    Code#

    Product Name

    Code#

    Detented Zoom Lens

    421-111

    Rotary Table

    581-541

    8-division LED Illumination

    425-161

    CMOS Camera

    484-314

    Power Cable

    581-921

    Data Processing System

    564-341

    OP-TEK Software

    581-108

    USB2.0 Cable

    581-951

    Operation Manual

    OP-TEK
