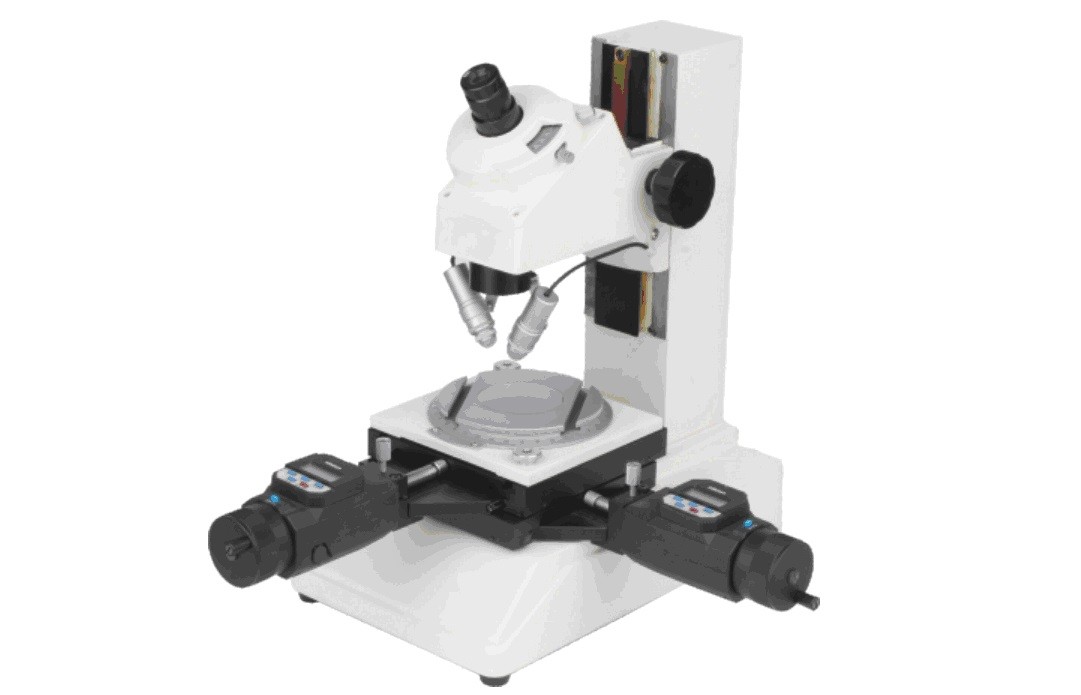

    STM-505D 1um Resolution Laboratory Portable Digital Toolmaker Measuring Microscope

    Ask Lasest Price
    Brand Name : SINOWON
    Model Number : STM-505D
    Certification : CE
    Supply Ability : 100 sets per month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    STM-505D 1um Resolution Laboratory Portable Digital Toolmaker Measuring Microscope

    STM-505D 1um Resolution Laboratory Portable Digital Toolmaker Measuring Microscope

    STM-505D 1um Resolution Laboratory Portable Digital Toolmaker Measuring Microscope


    Technical Specifications:


    ModelSTM-505D
    Code#531-122
    Metall Stage Size96×96mm
    Glass Stage Size152×152mm
    Working Travel50×50mm
    Resolution of MicrometerDigital 1um
    Measuring Accuracy≤5um
    Max.Height of Specimen115mm
    Max.Weight of Specimen2Kg
    Max.Magnification150×(Φ0.13mm)(15×Eyepiece+10×Objective)
    Min.Magnification20×(Φ6.5mm)(10×Eyepiece+2×Objective)
    Standard Magnification30×(Φ6.5mm)(15×Eyepiece+2×Objective)
    Standard Working Distance67mm
    EyepieceMonocular(Diopter Adjustable),Depression angle:30°
    Eyepiece ProtractorRange:360°;Graduation:1°
    Vernier angle Reading6’
    Reticle90°Broken Gross-Reticule
    IlluminationTungsten bulb(24V;2W),Lightness Adjustable
    Power SupplyAC90V-240V,60Hz/50Hz
    Dimension(D×W×H)415×315×420mm
    Packing Dimension(D×W×H)210×333×391mm
    Gross/Net Weight18Kg/14Kg

    STM-505D 1um Resolution Laboratory Portable Digital Toolmaker Measuring Microscope

    CCD Adapter


    Standard Delivery:


    Product Name

    Code#

    Product Name

    Code#

    Product name

    Code#

    15×Eyepiece

    531-522

    2×Objective

    531-602

    Anti-dust Cove

    531-911

    Mitutoyo Digimatic Head Micrometer (STM-505D)

    531-762

    Mitutoyo Digimatic Head Micrometer

    STM-505D

    531-762



    Optional Accessories:


    Product Name

    Code#

    Product Name

    Code#

    Product Name

    Code#

    10×Eyepiece

    531-512

    5×Objective

    531-612

    10×Objective

    531-622

    Rotary Table RTO

    581-501

    25mm Length Gauge

    531-719

    Built-in Reflected Bulb

    531-822
